Our solutions for solar energy

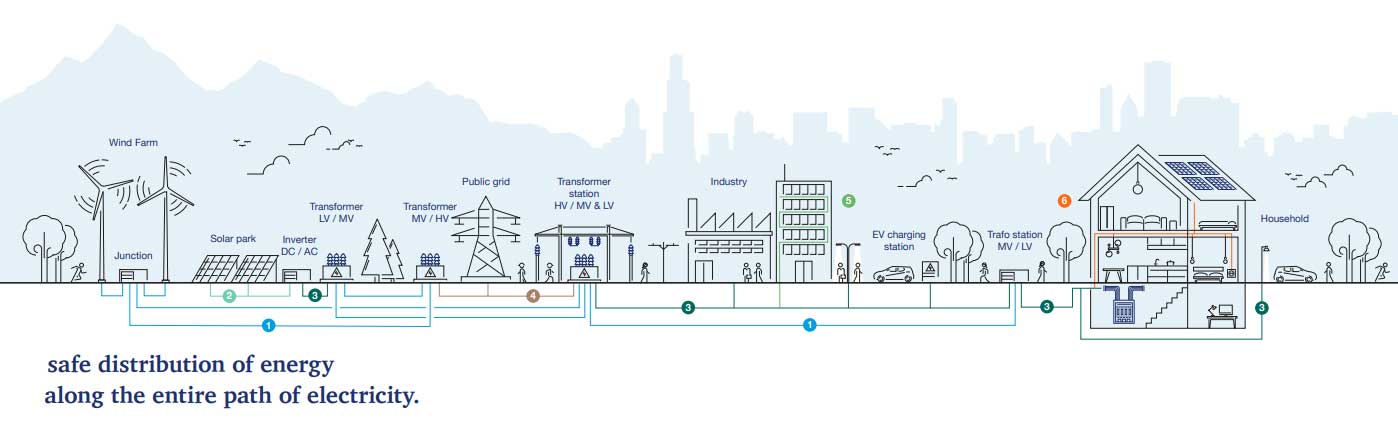

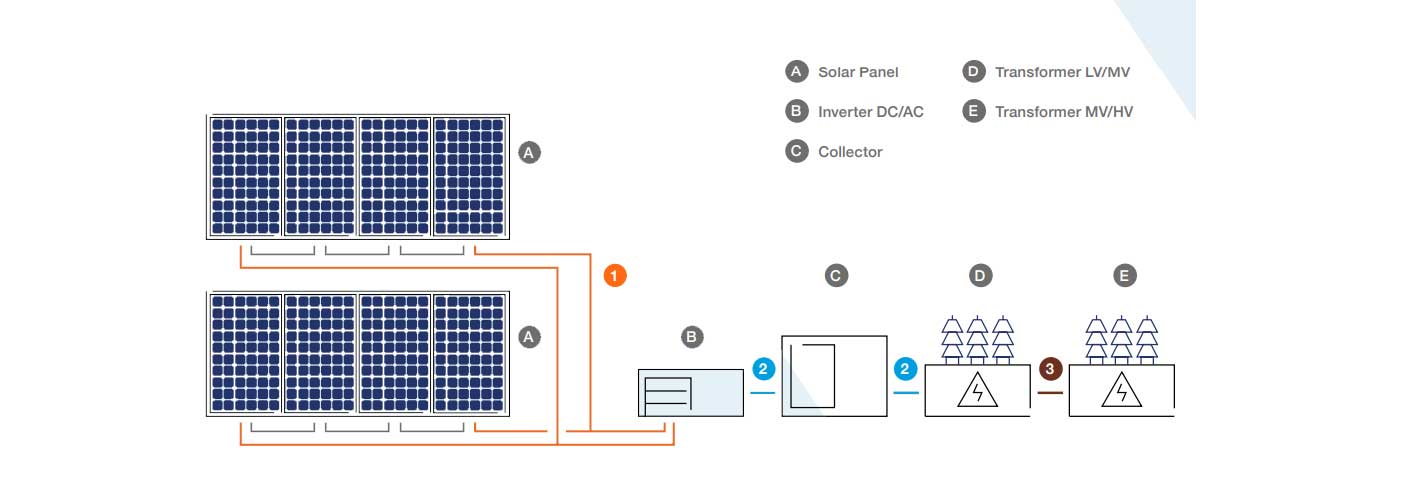

Solar parks
1. Single-core flex cable intended for PV installations
H1Z2Z2-K
Cu 1.5 kV DC cable
2. 1 kV
NAYY 0.6/1 kV
PVC insulated power cable
NA2XY 0.6/1 kV
XLPE insulated power cable
3. MV power cable & accessories
NA2XS(F)2Y
MV cable with XLPE insulation 12/20 kV | 18/30 kV
CB 36-630
Screened connector up to 42 kV

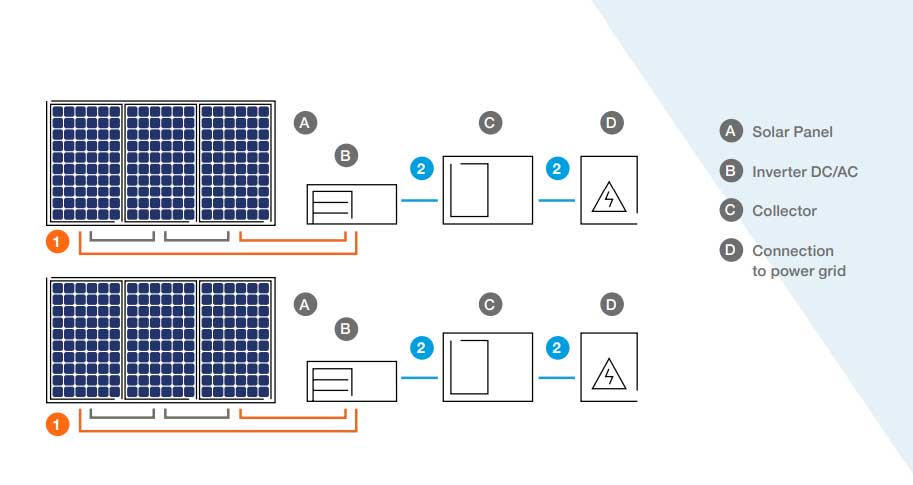

Rooftops
1. Single-core flex cable intended for PV installations
H1Z2Z2-K
Cu 1.5 kV DC cable
2. 3/4 core 1 kV
NAYY 0.6/1 kV
PVC insulated power cable
NA2XY 0.6/1 kV
XLPE insulated power cable
H1Z2Z2-K Link

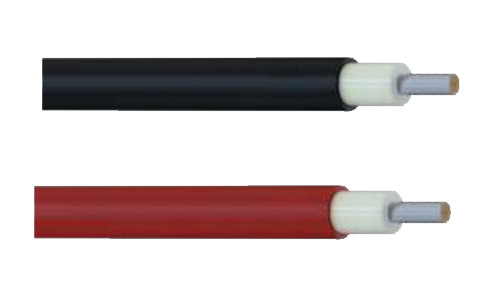

Single core flex cables intended for PV installation
Standard: EN 50618 | TÜV certificate: R60169212
Application
Cables are designed for DC-side connections of PV panels or strings of panels to DC/AC inverters according to applicable European Norm (EN 50618). Cables are both halogen-free and UV resistant with fire performance according CPR class Dca.
Construction
• Conductor: tin-coated copper conductor (class 5)
• Insulation: made of cross-linked halogen-free polyolefin
• Sheath: outer sheath made of cross-linked halogen-free polyolefin, colour black or red
1 kV power cables
Standard: DIN VDE 0276-603
Application
For firm installation in interiors, outdoor installation, in soil, in water and concrete, if no posterior mechanical damage is to be expected.

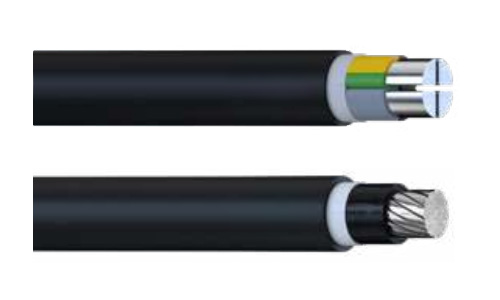

NAYY 0.6 /1 kV Link
Construction
• Conductor: Aluminium
• Insulation: PVC
• Filler • Sheath: PVC
NA2XY 0.6/1 kV Link
Construction
• Conductor: Aluminium
• Insulation: XLPE
• Filler • Sheath: PVC

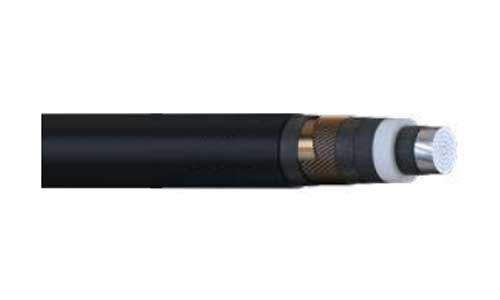

NA2XS(F)2Y 12/20 kV | 18/30 kV
MV power cable
Standard: HD 620 10C | DIN VDE 0276-620
Application
The cables are suitable for installation indoors, outdoors, in the ground and in water. Installation to be carried out in the ground or in a cable channel.
Construction
• Conductor: Aluminium
• Inner semi-conducting layer
• Insulation: XLPE
• Outer semi-conducting layer
• Conductive tape
• Copper wire screen and copper tape
• Water-blocking tape • Outer sheath: PE

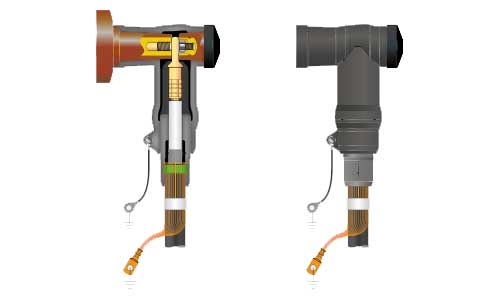

CB 36-630 Screened connector
MV accessories
Max. system voltage up to 42 kV, continuous nominal current 630 A
